Yinguang series (Screen led dot light)

Explore more

  • YM-Y66AT
  • YM-Y66AT

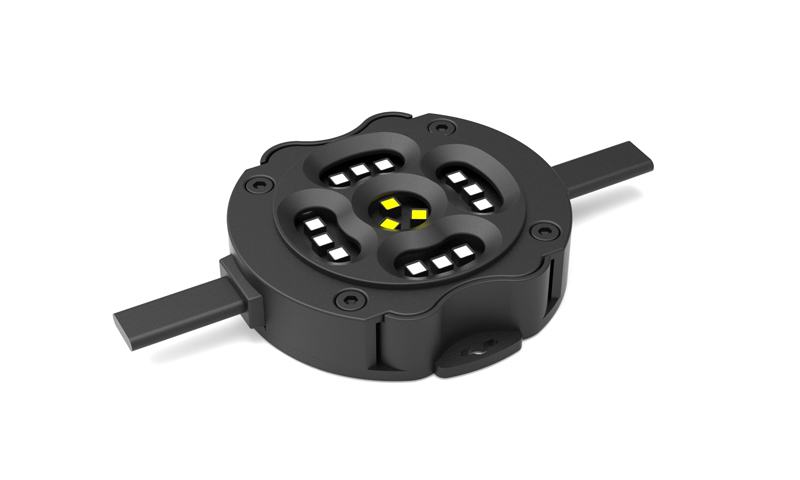

YM-Y66AT

Product Features:

? Support DMX512/Art-net bus-mastering technology;

? Integrated snap, no joint, anti-pull style link design;

? Flame and UV retardant material, Germany imported high thermal glue, full potting waterproof design;

? Outdoor lighting and static special protection design;

? Professio nal optics and special partial light design, Deep Glare Control,reduce the light above the horizontal direction on ensuring the surface brightness;


Download

ParameterLight distribution curveSize chartInstallation Notes

Performance parameter

nameparameter
ColorRGB/RGBW/W
Light SourceSMD3535/SMD2835
IC ModelDMX512
Gray scale8Bit/16Bit
Refresh rate200Hz~4KHz
MaterialCast aluminum+PC
Weight125g
Source Life≥50000h
Working Temperature-40℃~65℃
Protection RatingIP67
Flame RatingV-0
Anti UV gradeLevel 4


Basic model

modelshelllight sourcecolourOperating VoltagepowerBeam angle
YM-80A18L00RGBCast aluminumSMD3535RGBDC24V2.7W110°
YM-66A12L0RGB-TCast aluminumSMD3535RGBWDC24V2.7W110°
YM-66A12L0RGBW-TCast aluminumSMD3535+SMD2835RGBWDC24V4W110°
YM-66A12L0000W-TCast aluminumSMD2835WDC24V4W110°
