Yinguang series (Screen led dot light)

Explore more

  • YM-F36PT
  • YM-F36PT
  • YM-F36PT
  • YM-F36PT
  • YM-F36PT

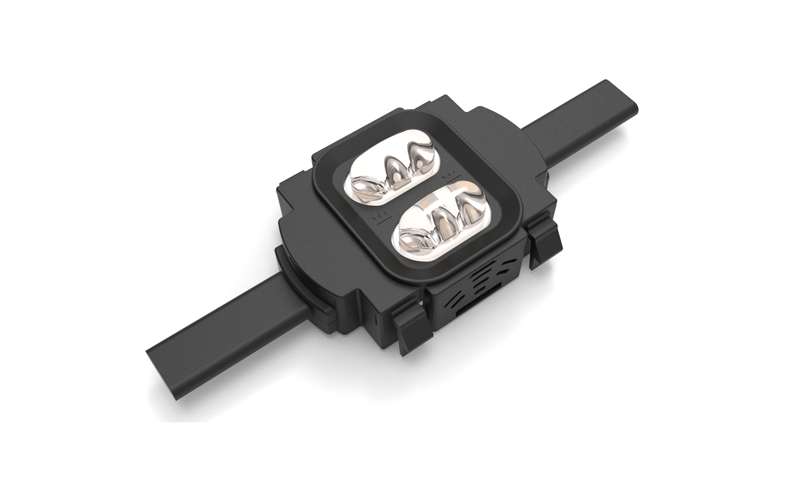

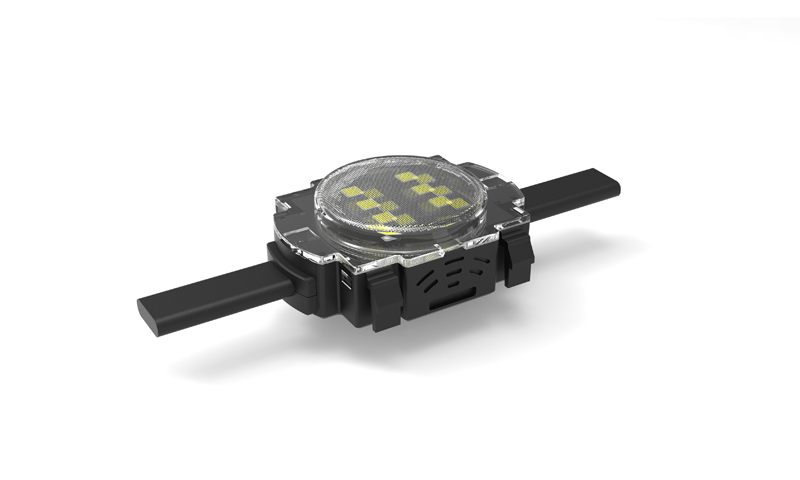

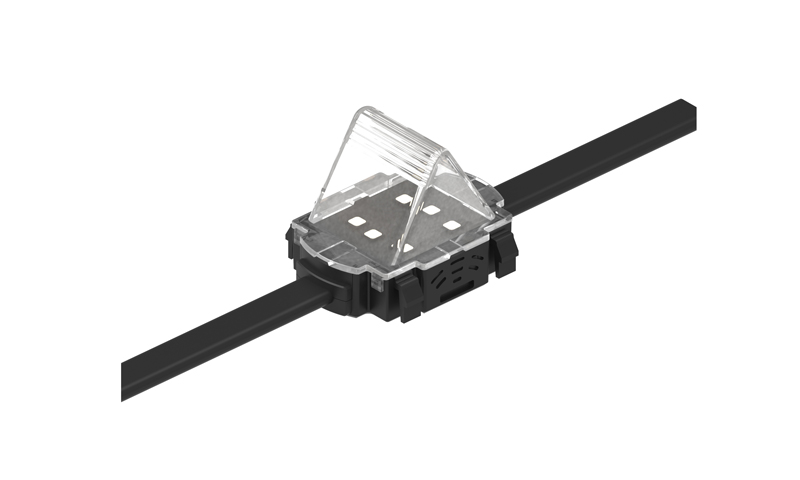

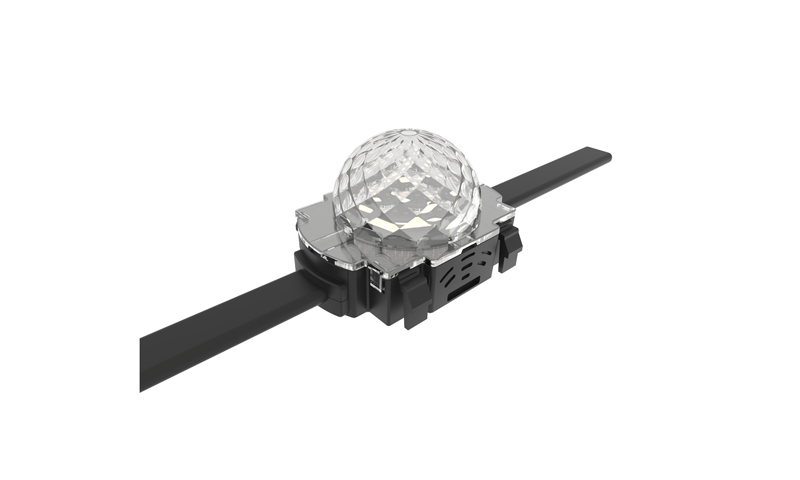

YM-F36PT

Product Features:

? Support DMX512/Art-net bus-mastering technology;

? Integrated snap, no joint, anti-pull style link design;

? Flame and UV retardant material, Germany imported high thermal glue, full potting waterproof design;

? Outdoor lighting and static special protection design;

?Professio nal optics and special partial light design, Deep Glare Control,reduce the light above the horizontal direction on ensuring the surface brightness;


Download

ParameterLight distribution curveSize chartInstallation Notes

Performance parameter

nameparameter
ColorRGB/RGBW/W
Light SourceSMD3535/SMD2835
IC ModelDMX512
Gray scale8Bit/16Bit
Refresh rate200Hz~4KHz
MaterialPC
Weight26g
Source Life≥50000h
Working Temperature-40℃~65℃
Protection RatingIP67
Flame RatingV-0
Anti UV gradeLevel 4


Basic model

modelshelllight sourcecolourOperating VoltagepowerBeam angle
YM-F36P04L00RGB-TEngineering plasticsSMD3535RGBDC24V1.3W110°
YM-F36P06L00RGB-TEngineering plasticsSMD3535RGBDC24V1.3W110°
YM-F36P06L0RGBW-TEngineering plasticsSMD3535+SMD2835RGBWDC24V1.8W110°
YM-F36P06L0000W-TEngineering plasticsSMD2835WDC24V2W110°
