Yinguang series (Screen led dot light)

Explore more

  • YM-F30PT-1
  • YM-F30PT-1

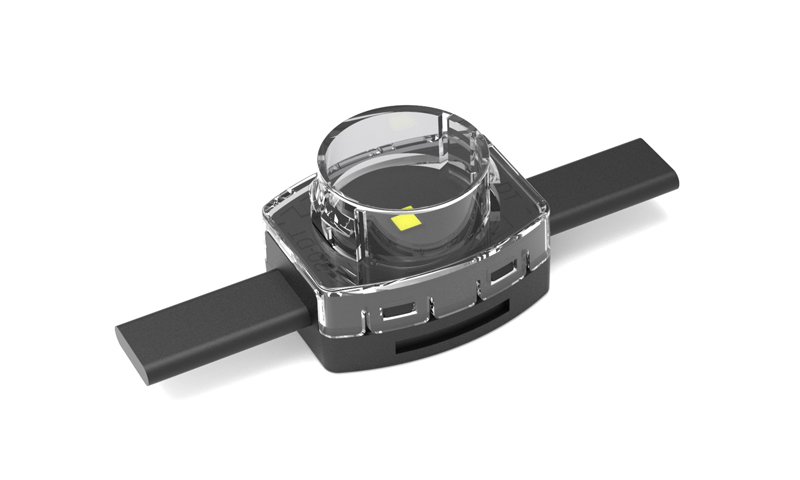

YM-F30PT-1

Product Features：

? Support DMX512/Art-net bus-mastering technology;

? Integrated snap, no joint, anti-pull style link design;

? Flame and UV retardant material, Germany imported high thermal glue, full potting waterproof design;

? Outdoor lighting and static special protection design;

? Soft design, flexible application ,4 installation methods option;

? Adopt secondary light distribution anti glare design.


Download

ParameterLight distribution curveSize chartInstallation Notes

Performance parameter

nameparameter
ColorRGB/RGBW/W
Light SourceSMD3535/SMD2835
IC ModelDMX512
Gray scale8Bit/16Bit
Refresh rate200Hz~4KHz
MaterialPC
Weight22g
Source Life≥50000h
Working Temperature-40℃~65℃
Protection RatingIP67
Flame RatingV-0
Anti UV gradeLevel 4


Basic model

modelshelllight sourcecolourOperating VoltagepowerBeam angle
YM-F30P01L00RGBEngineering plasticsSMD3535RGBDC24V0.3W120°
YM-F30P03L00RGBEngineering plasticsSMD3535RGBDC24V0.7W120°
YM-F30P03L0RGBWEngineering plasticsSMD3535 four in oneRGBWDC24V0.9W120°
YM-F34P04L0000WEngineering plasticsSMD2835WDC24V0.7W120°
