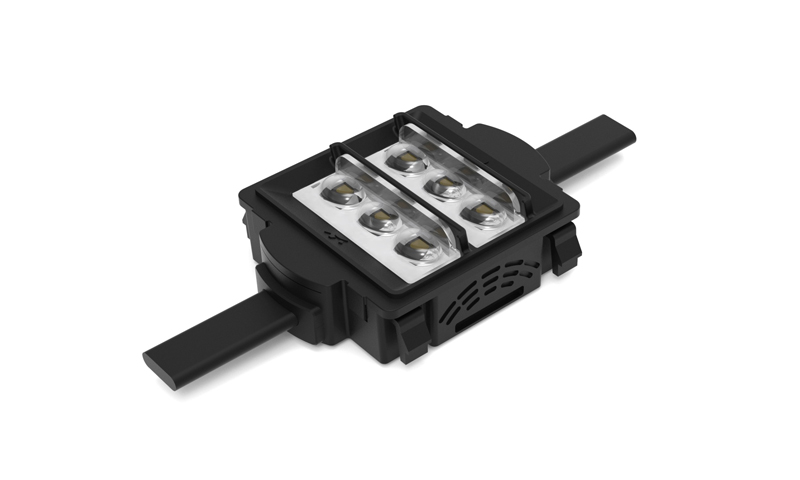

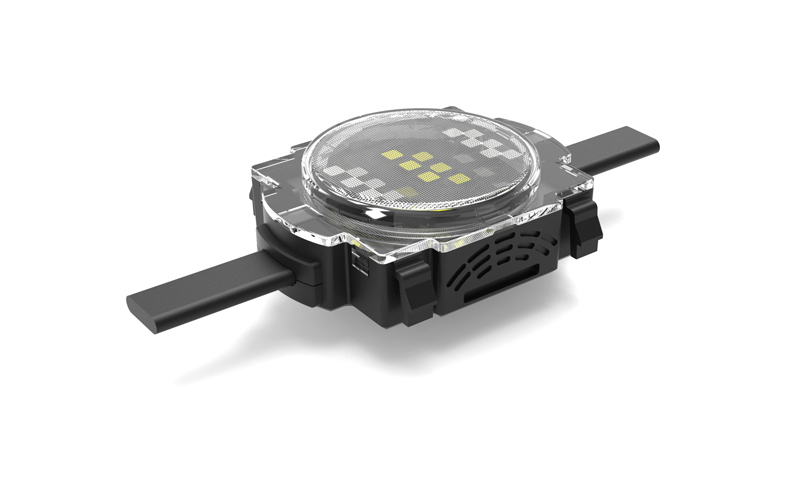

YM-F42PT

Product Features:

? DMX512/Art-net bus-mastering technology;

? Integrated snap, no joint, anti-pull style link design;

? Flame and UV retardant material, Germany imported high thermal glue, full potting waterproof design;

? Outdoor lighting and static special protection design;

? Professio nal optics and special partial light design, Deep Glare Control,reduce the light above the horizontal direction on ensuring the surface brightness;


Download

ParameterLight distribution curveSize chartInstallation Notes

Performance parameter

nameparameter
ColorRGB/RGBW/W
Light SourceSMD3535/SMD2835/SMD3030
IC ModelDMX512
Gray scale8Bit/16Bit
Refresh rate200Hz~4KHz
MaterialPC
Weight39g
Source Life≥50000h
Working Temperature-40℃~65℃
Protection RatingIP67
Flame RatingV-0
Anti UV gradeLevel 4


Basic model

modelshelllight sourcecolourOperating VoltagepowerBeam angle
YM-F42P08L00RGB-TEngineering plasticsSMD3535RGBDC24V2.7W110°
YM-F42P06L0RGBW-TEngineering plasticsSMD3535+SMD2835RGBWDC24V2W110°
YM-F42P09L0RGBW-TEngineering plasticsSMD3535+SMD3030RGBWDC24V3W110°
YM-F42P06L0000W-TEngineering plasticsSMD2835WDC24V3W110°
